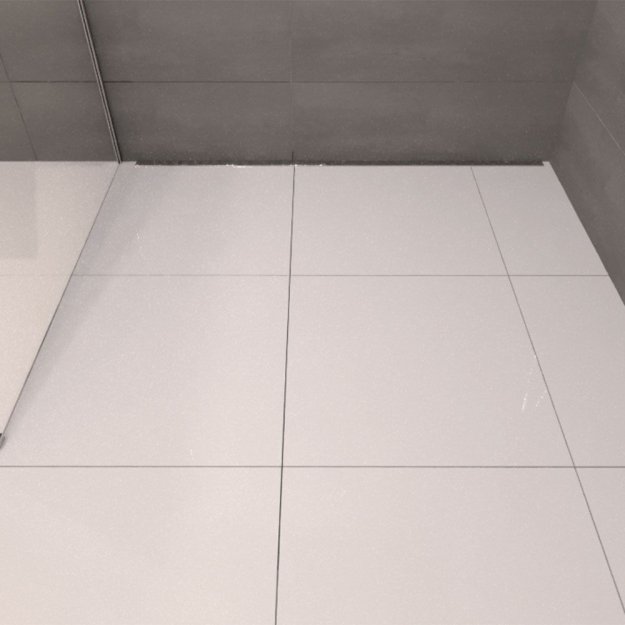

Rapid Recess subfloor lowering kits - Designed to provide the necessary depth to install a true, zero-entry curbless shower.
The Bracket Kit for Linear Drain at the Back Wall (Model RR25LDK) is used with pre-manufactured or mortar shower pans with a linear drain. One joist bay is recessed 1” below the top of the floor joists to accommodate the depth of the linear drain body. The rest of the shower pan area is recessed 11/16” which is limited by the height of the floor joists. Joist orientation must be considered since the drain body will always be parallel to the joists. Covers 25 square feet or less with the recommended shower pan sizes being 5' x5' or 4' x 6'. Includes metal brackets for lowering plywood floors for a curbless shower.

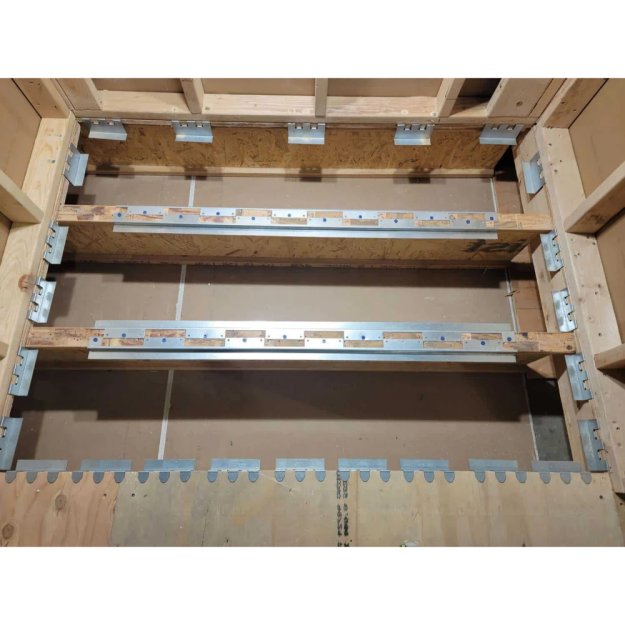

- Installed from above the joists without the use of a 2×4 frame or compromising the structural integrity of the joists (Rapid Recess doesn’t interfere with plumbing or other obstacles between the joists)

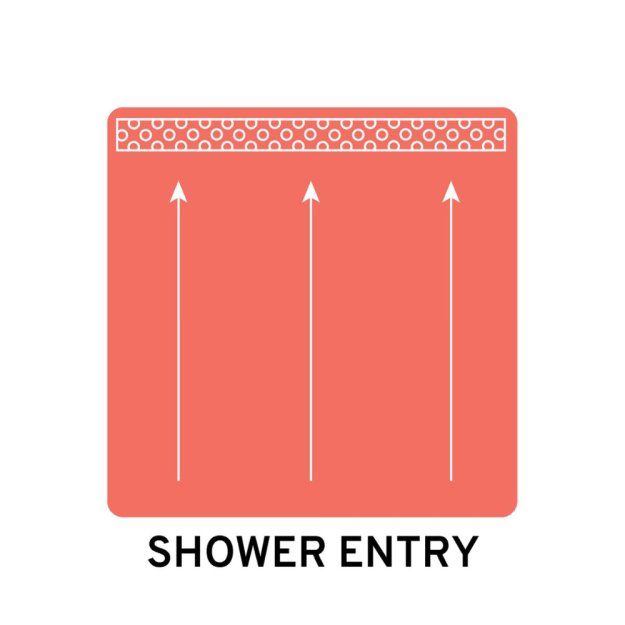

- Used with different, types, widths and orientation of floor joists (joists parallel or perpendicular to shower entry)
- No framing ledger boards or cross-bracing needed
- Floor height within the lowered area is recessed by 11/16"
- Brackets are made of 16 gauge galvanized steel
- Kits available for point or linear drains and shower pans
- Complies fully with ICC standards and codes
- Manufactured in Colorado, USA

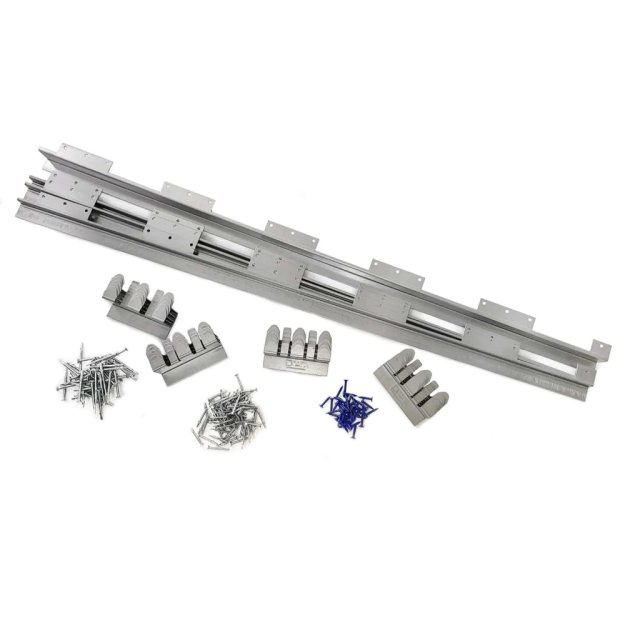

RR25LDK Installation Kit Includes:
- M bracket - 47 3/8" long main bracket fastened to the top of floor joists (x8)
- Z bracket - 5" long side bracket used for wall to recess and main floor to recess transitions (x22)
- ML bracket - 47 3/8" long main bracket fastened to the top of last floor joist (x2)
- ZL bracket - 5” long side bracket used for wall to recess (x8)
- #10 2 3/4” wood to metal self-drilling screws with wings (x40)
- #10 1 5/8” wood to metal self-drilling screws with wings (2 packages of 80 pieces)
- #8 x 1 1/4” Flat-head Phillips screws (x60)
