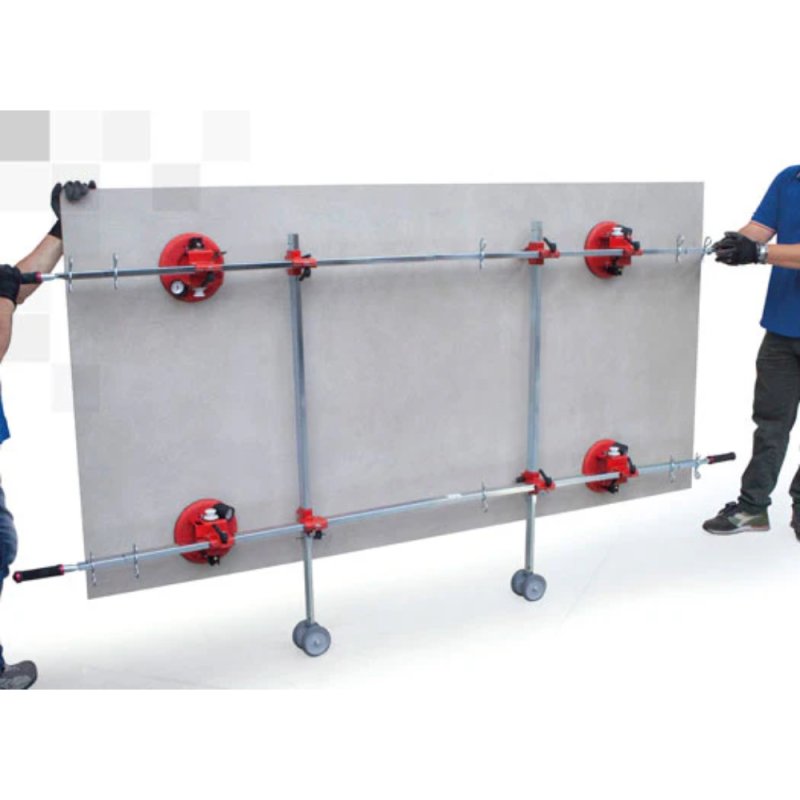

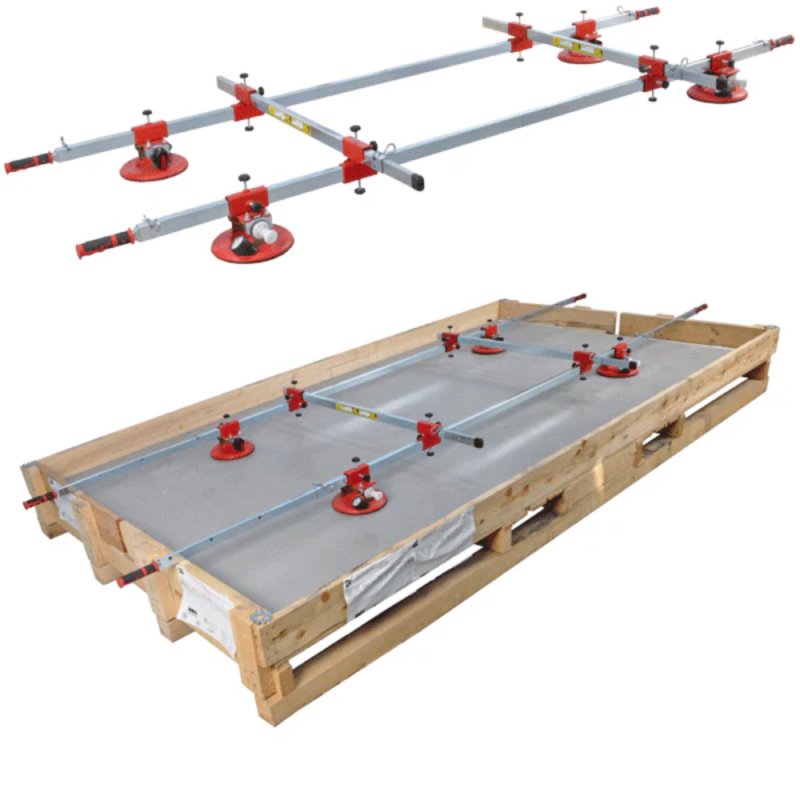

From Montolit, the SUPERLIFT Tile Handling System is designed for handling and positioning of the latest generation large format (300×150 cm) porcelain stoneware slabs. The overall dimensions of the complete frame are designed to allow the removal of the tile slabs from the special packaging crates which carry them.
Made of galvanized steel to resist wear and corrosion, the SUPERLIFT enables movement of the tile slabs in both horizontal and vertical positions. The telescopic handles allow a more ergonomic grip and the SUPERLIFT carrying frame is equipped with telescopic feet to allow support on the ground so that the tile is held in the frame without being damaged.
The SUPERLIFT comes with four 8" non-marking suction cups that are equipped with a vacuum safety gauge that indicate the force of suction being applied to the tile slab. The suction cups can be positioned according to the size of the tile slab together with the workings that are realized in the plate (holes, indentations, etc.). In the case of thin/reduced thickness tile slabs, additional suction cups can be added to avoid flexing of the tiles.
The wheeled system support is an innovation in this field, allowing the operator to easily and safely wheel heavy slabs into place.
Maximum load is 176 lbs (80 Kg).
