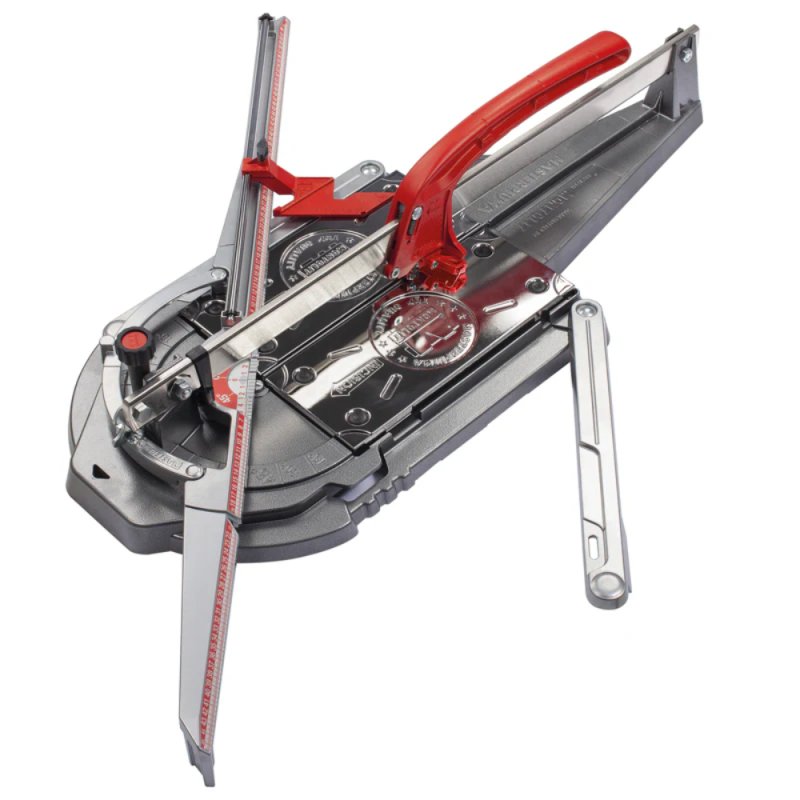

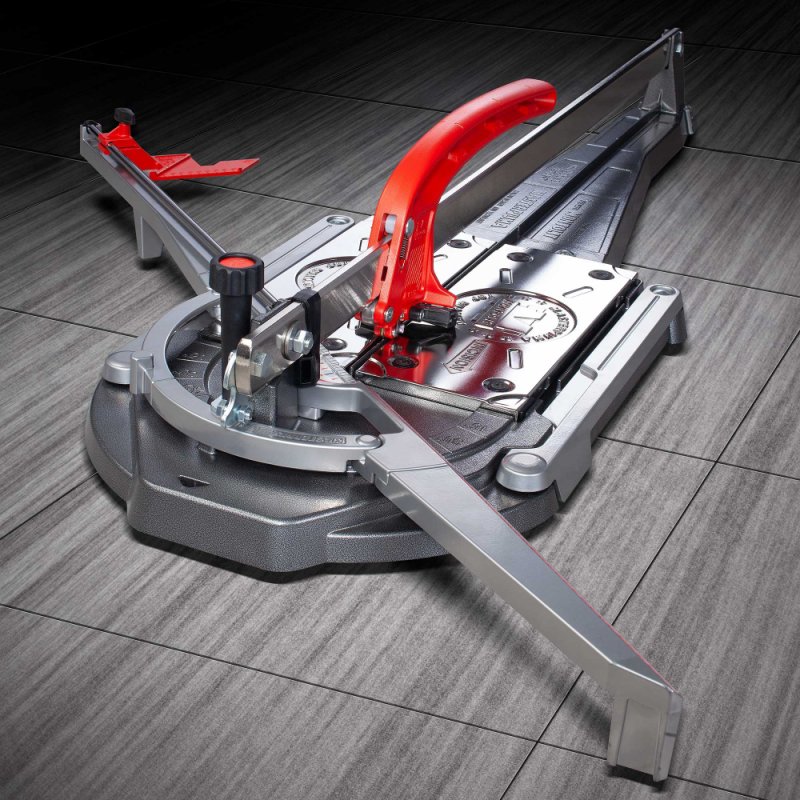

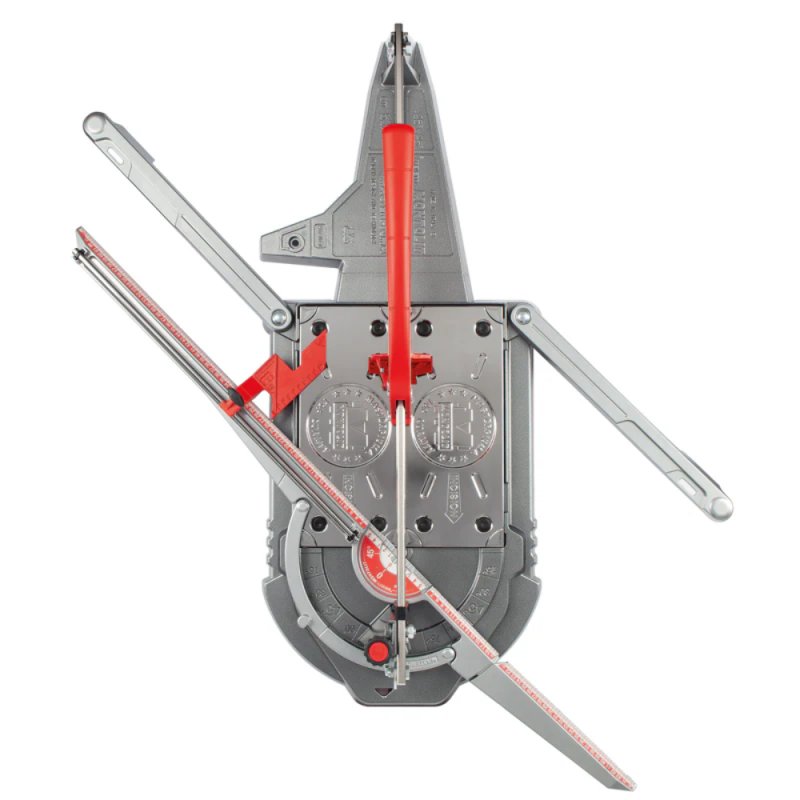

The 63P5XL is Montolit"s newest Masterpiuma tile cutter. Now includes the support arms from the larger Masterpiuma cutters. At no additional cost!
Features:
- Newly Designed Frame: Lightweight alloy frame structured to support points of greatest stress. Optimized for front cuts, thick cuts, and large format porcelain.
- Multifunction Square: The oversized goniometric square rotates 45 ° left and right. Square closes within the footprint of the frame for easy handling and transport.
- Incision Handle: The large handle allows for precise control of the incision depth and splitting force. Pressure can be perfectly modulated to easily cut material from thin glass mosaic to tile up to 20 mm thick.
- Scoring Wheel: The titanium coated, tungsten carbide engraving wheel is rated for 5,000 meters of use.
Specificications
| Item No. | Max Cut | Diag. Cut | Thickness | Weight |
|---|
| 63P5 | 24.5" | 17" | 3/4" | 24.2 lbs. |
| 75P5 | 29" | 21" | 3/4" | 30.8 lbs. |
| 93P5 | 36" | 26" | 3/4" | 33.0 lbs. |
| 131P5 | 51.5" | 36.5" | 3/4" | 55.0 lbs. |
| 161P5 | 63.5" | 44.5" | 3/4" | 63.9 lbs. |
