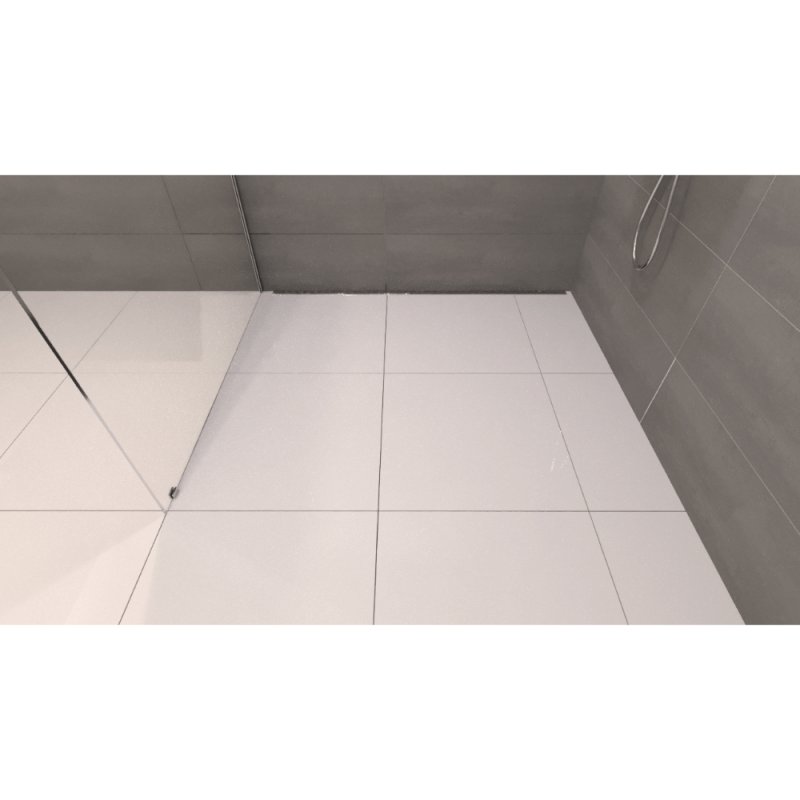

Rapid Recess kits are designed to provide the necessary subfloor depth to easily install a true, zero-entry curbless shower. System is compatible with all wood construction scenarios including standard lumber, I-joists, and trusses with ¾" plywood subfloor. Brackets are made of 16 gage galvanized steel.
- Installed above the joists without the use of a 2x4 frame or compromising the structural integrity of the joists
- Can be used with different types, widths, and orientation of floor joists
- No framing ledger boards or cross-bracing needed
- Floor height within the lowered area is recessed by 11/16" inch
- Kits available for point or linear drains
- Complies fully with ICC standards and codes

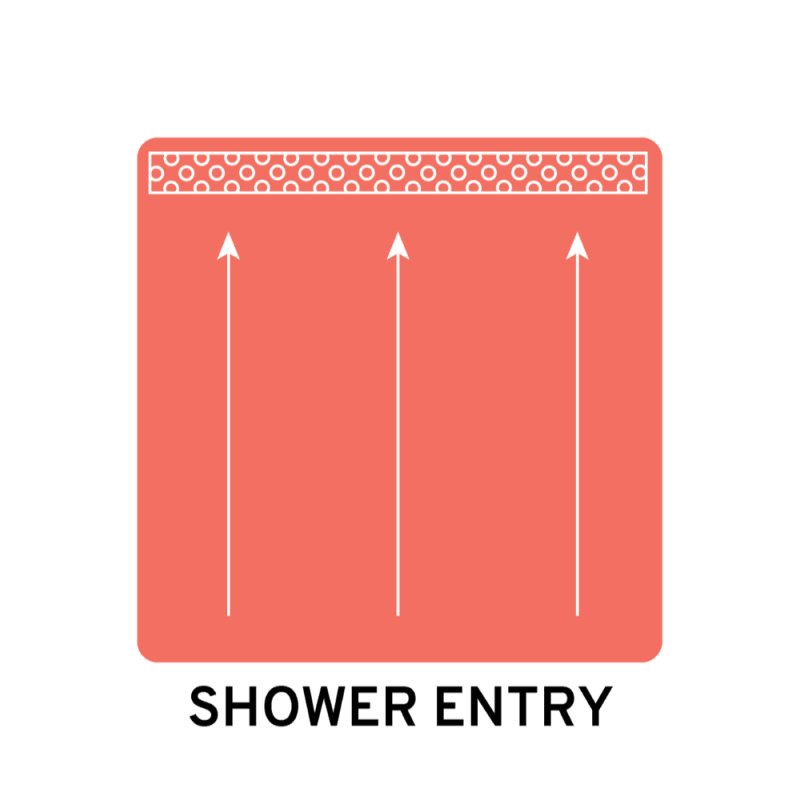

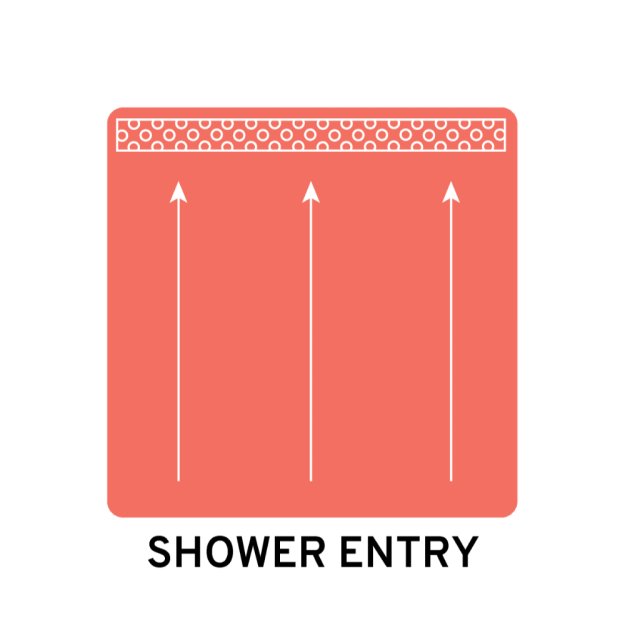

The RR25LDK kit for linear drains fit a shower area of 25 square feet or less. Joists may be running parallel or perpendicular to the shower entry.

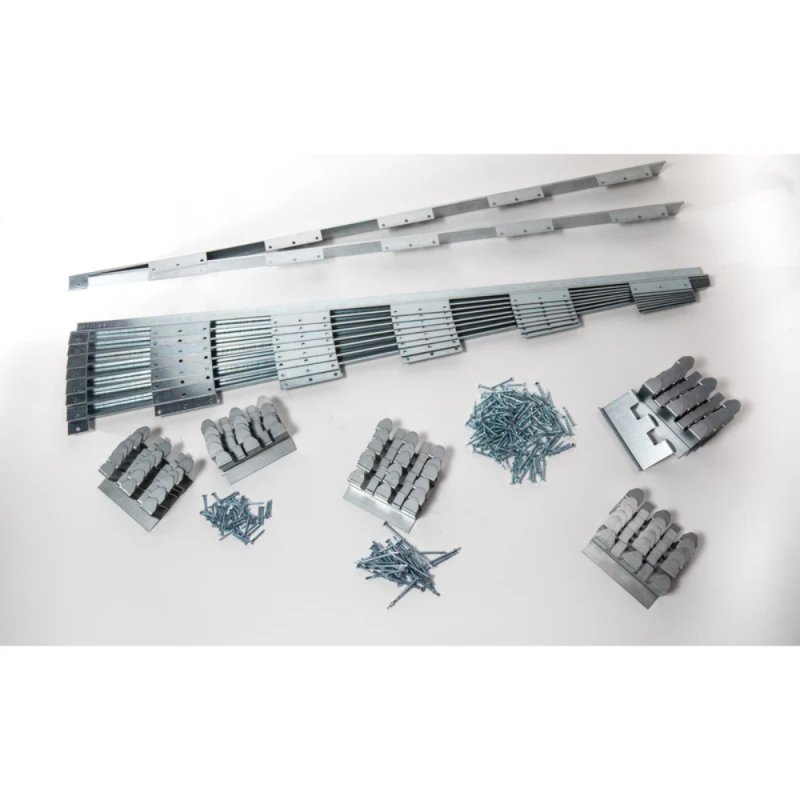

Kit includes:
- M Bracket — 47-3/8" long, fastened to the top of the floor joists (Qty 10)
- LM Bracket — 47-3/8" long main bracket fastened to the top of drain bay floor joist (Qty 2)
- Z Bracket — 5" long side bracket for wall to recess and floor to recess transitions (Qty 8)
- LZ Bracket — 5" long side bracket used for wall to recess (Qty 22)
- #10, 2-3/4" wood to metal self-drilling screws with wings (Qty 40)
- #10, 1-5/8" wood to metal self-drilling screws with wings (Qty 160)
- #10, 1-1/8" pancake head, square drive exterior wood to metal screws (Qty 60)
