Rapid Recess kits are designed to provide the necessary subfloor depth to easily install a true, zero-entry curbless shower. System is compatible with all wood construction scenarios including standard lumber, I-joists, and trusses with 3/4" plywood subfloor. Brackets are made of 16 gage galvanized steel.
- Installed above the joists without the use of a 2x4 frame or compromising the structural integrity of the joists
- Can be used with different types, widths, and orientation of floor joists
- No framing ledger boards or cross-bracing needed
- Floor height within the lowered area is recessed by 11/16" inch
- Kits available for point or linear drains
- Complies fully with ICC standards and codes

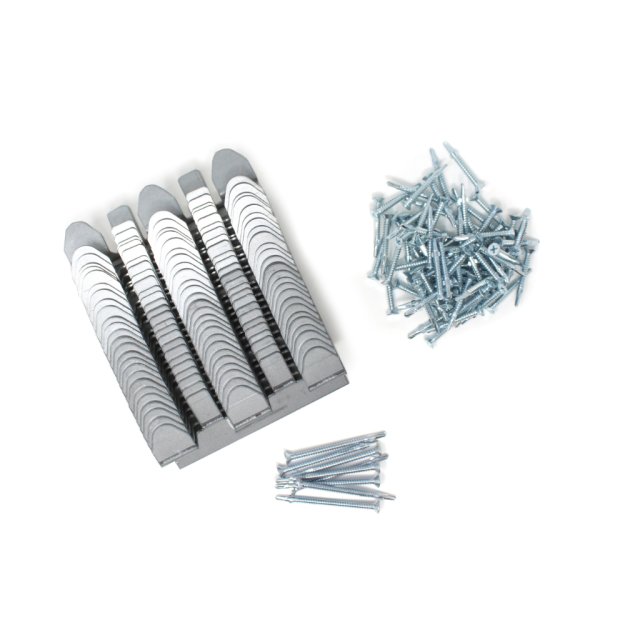

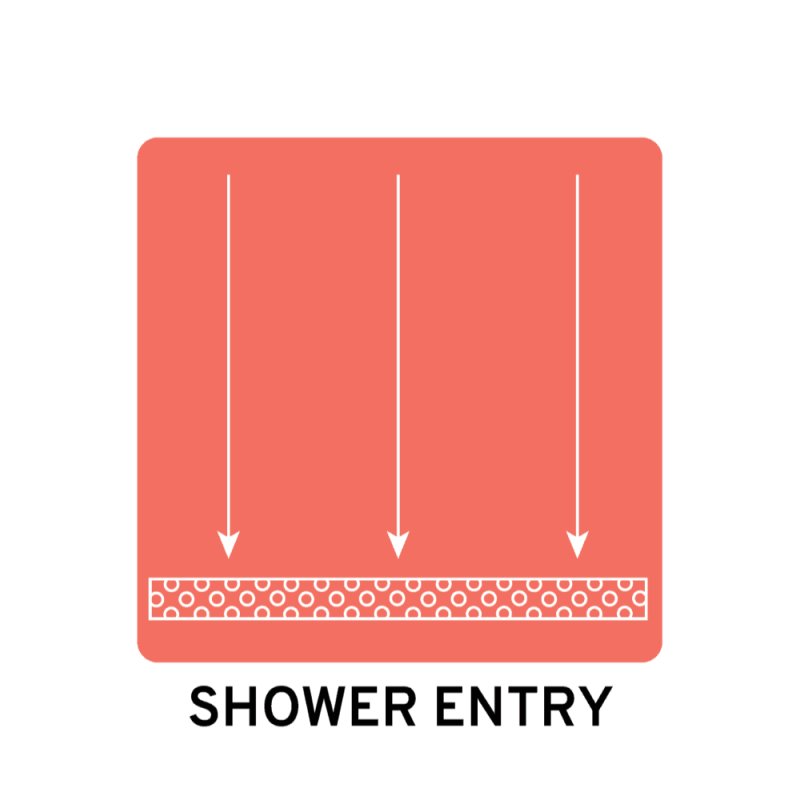

The RR6ELDK kit for linear drains at shower entry fit an area of 25 square feet or less. Joists may be running parallel or perpendicular to the shower entry. Kit includes:
- Z Bracket "“ 5" long side bracket used for wall to recess and main floor to recess transitions (Qty "“ 8)
- #10, 2-3/4" wood to metal self-drilling screws with wings (Qty "“ 40)
- #10, 1-5/8" wood to metal self-drilling screws with wings (Qty "“ 160)
